Time Performance#
This notebook shows the performance of different methods in infomeasure. Time complexity of H, MI, and TE is relevant when scaling up the dataset size. As each approach is processing the data differently, this notebook looks at each approach separately.
First, this notebook prepares example data to be used with all measures.
Then, for each entropy, mutual information and transfer entropy, this notebook measures the execution time over several runs.
benchmark_approach() makes sure that each approach is executed at least two and up to 30 times.
If two runs have been performed, this function continues to collect runtimes until either 40 seconds have passed, or 30 runs have been performed.
This way we have a good estimate of the time complexity, and we can show the standard deviation of the execution time.

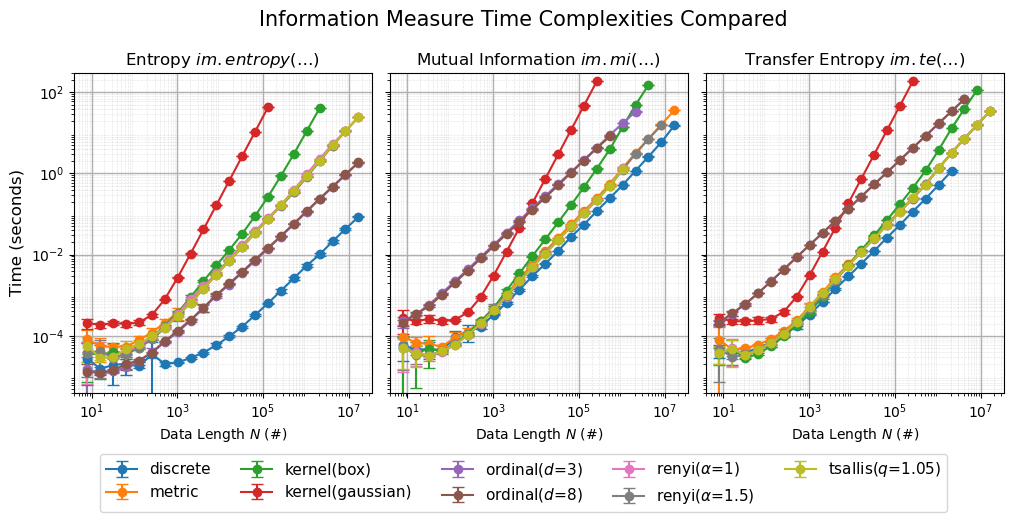

Finally, all three plots are united into a comparison plot.
Times are collected using the python native timeit module.
The benchmarks in this notebook have been run on a M4 Pro, sequentially on one core.
If you want to run these benchmarks on your own system, modify the parameters of the example data,
to match your system’s specifications.
Before scaling up, it is recommended to first run the benchmarks on a smaller dataset, as for each H, MI, and TE, calculations took between 36 minutes and 1:40h, as we wanted to collect enough statistics,
to get a reliable estimate of the performance.
Our measured and plotted results can be downloaded: time_data.pkl.
At the end of this page, you can see how to load in the data.
import infomeasure as im
import numpy as np
import matplotlib.pyplot as plt
import timeit # for benchmarking
import time # for measuring elapsed time
import progressbar
Prepare Data#
H: Gaussian data with mean 0 and standard deviation 10.
MI: Multivariate Gaussian data with mean 0 and covariance matrix \( I = \begin{bmatrix} 10 & \rho \\ \rho & 10 \end{bmatrix}, \rho = 6 \).
TE: \(X\) from H and for \(Y\), \(X_i = Y_{i+1}\) for \(i = 1, \ldots, N-1\).
def generate_data_h(N, mean=0, std=10):
return rng.normal(mean, std, N)
def generate_data_mi(N, cov_matrix=[[10, 6], [6, 10]]):
data = rng.multivariate_normal([0, 0], cov_matrix, N)
X = data[:, 0]
Y = data[:, 1]
return X, Y
# Generate the data for different lengths of sequences
data_lengths = [
2**k for k in range(3, 25)
] # reduce for testing. Needs to be increasing lengths
rng = np.random.default_rng(925847)
data_h = [generate_data_h(N) for N in data_lengths]
data_mi = [generate_data_mi(N) for N in data_lengths]
data_te = [(var, np.roll(var, 1)) for var in data_h]
# discrete versions for the discrete approach
data_h_discrete = [var.astype(int) for var in data_h]
data_mi_discrete = [(var[0].astype(int), var[1].astype(int)) for var in data_mi]
data_te_discrete = [(var[0].astype(int), var[1].astype(int)) for var in data_te]
print(f"Shortest sequence length: {min(data_lengths)}")
print(f"Longest sequence length: {max(data_lengths):e}")
Shortest sequence length: 8
Longest sequence length: 1.677722e+07
The following combinations are used for the analysis. This dictionary will also be used to store the runtime results and later to plot the results.
combinations = {
"discrete": {"approach": "discrete", "kwargs": {}},
"kernel(box)": {
"approach": "kernel",
"kwargs": {"bandwidth": 0.5, "kernel": "box"},
},
"kernel(gaussian)": {
"approach": "kernel",
"kwargs": {"bandwidth": 0.5, "kernel": "gaussian"},
},
"metric": {"approach": "metric", "kwargs": {"k": 4, "minkowski_p": np.inf}},
"ordinal($d$=3)": {"approach": "ordinal", "kwargs": {"embedding_dim": 3}},
"ordinal($d$=8)": {"approach": "ordinal", "kwargs": {"embedding_dim": 3}},
r"renyi($\alpha$=1)": {"approach": "renyi", "kwargs": {"alpha": 1}},
r"renyi($\alpha$=1.5)": {"approach": "renyi", "kwargs": {"alpha": 1.5}},
"tsallis($q$=1.05)": {"approach": "tsallis", "kwargs": {"q": 1.05}},
}
Timing Performance#
We’ll write a dynamically timed benchmarking function. This will help us measure how long each approach takes to compute on a given dataset. We’ll use this function to compare different approaches and see which one performs best. The utility function allows us to provide a function, parameters, and maximum time or repetitions. This way precision and long execution time are balanced. Later, we can extract the mean and standard deviation for each approach and show it in the plot.
def benchmark_approach(
func, *data, max_time=40, max_repetitions=30, min_repetitions=2, **params
):
"""Run function and return execution times.
Dynamically decides the number of repetitions based on available time.
Parameters
----------
func : callable
Function to benchmark.
*data : iterable
Arguments to pass to the function.
params : dict
Keyword arguments to pass to the function.
max_time : float, optional (default=20)
Maximum time in seconds to run the function.
max_repetitions : int, optional (default=100)
Maximum number of repetitions to run the function.
If None, runs until max_time is reached.
min_repetitions : int, optional (default=2)
Minimum number of repetitions to run the function.
If None, runs until max_time is reached.
"""
times = []
total_time = 0
t0 = time.time()
while (len(times) < min_repetitions) or (
total_time < max_time
and (max_repetitions is None or len(times) < max_repetitions)
):
# Run the function and measure time
timer = timeit.Timer(lambda: func(*data, **params))
times.append(timer.timeit(number=1))
total_time = time.time() - t0
return np.array(times)
Entropy calculation#
For each approach in the combinations dictionary, our benchmarking function will run im.entropy.
This is done for each dataset in the data list.
As the data length is increasing, the loop stops, if the current benchmarking time exceeds benchmark_max_time.
Then mean and standard deviation of the benchmarking times are calculated and stored as results in the combinations dictionary.
benchmark_max_time = 80 # if exceeded, stop benchmarking current approach
total_keys = len(combinations)
# Create a progress bar for the outer loop with customized widgets
widgets = [
progressbar.DynamicMessage("key"),
" |",
progressbar.Bar(),
" | ",
progressbar.Percentage(),
" (",
progressbar.ETA(),
")",
]
with progressbar.ProgressBar(max_value=total_keys, widgets=widgets) as pbar:
for i, (key, combination) in enumerate(combinations.items()):
pbar.update(i, key=key) # Update the progress bar with the current key
data = data_h if combination["approach"] != "discrete" else data_h_discrete
times_h = [None] * len(data)
for n in range(len(data)):
t0 = time.time()
times_h[n] = benchmark_approach(
im.entropy,
data[n],
approach=combination["approach"],
**combination["kwargs"],
)
if time.time() - t0 > benchmark_max_time:
print(f"Time limit exceeded for {key} at index {n}")
break
means_h = [
np.mean(times_h[n]) if times_h[n] is not None else np.nan
for n in range(len(data))
]
stds_h = [
np.std(times_h[n]) if times_h[n] is not None else np.nan
for n in range(len(data))
]
combinations[key]["h_means"] = means_h
combinations[key]["h_times"] = times_h
combinations[key]["h_stds"] = stds_h
key: kernel(gaussian) ||###### | | 22% (ETA: 0:12:21)
Time limit exceeded for kernel(box) at index 18
key: metric ||############# | | 33% (ETA: 0:13:34)
Time limit exceeded for kernel(gaussian) at index 14
key: renyi($\alpha$=1.5) ||##################### | | 77% (ETA: 0:07:24)
Time limit exceeded for renyi($\alpha$=1) at index 21
key: tsallis($q$=1.05) ||######################### | | 88% (ETA: 0:04:04)
Time limit exceeded for renyi($\alpha$=1.5) at index 20
key: tsallis($q$=1.05) ||#############################| | 100% (Time: 0:36:19)

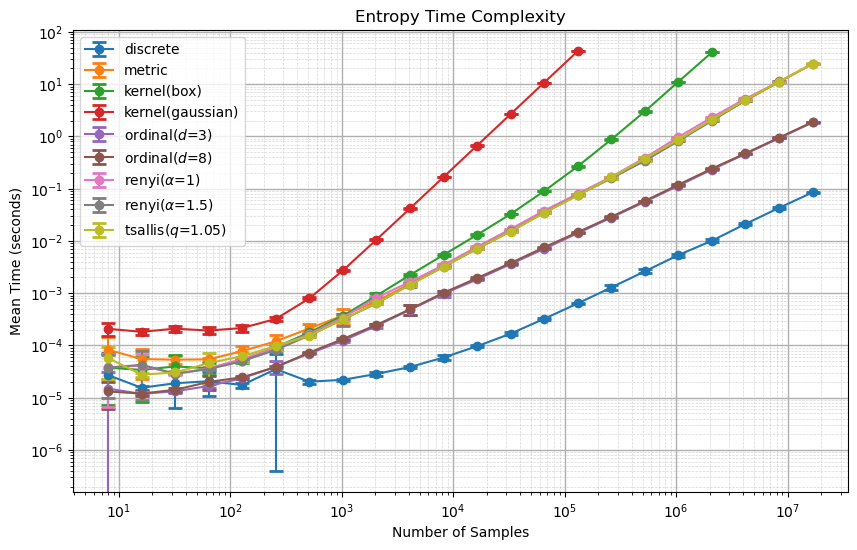

Finally, the result is plotted against the number of samples used in each dataset. The scales are log-log to better visualize the relationship between time complexity and dataset size.
# Plot means against number of samples
plt.figure(figsize=(10, 6))
for key, combination in combinations.items():
plt.errorbar(
data_lengths,
combination["h_means"],
yerr=combination["h_stds"],
marker="o",
label=key,
capsize=5,
capthick=2,
)
plt.xlabel("Number of Samples")
plt.ylabel("Mean Time (seconds)")
plt.title(f"Entropy Time Complexity")
plt.legend()
# log-log
plt.xscale("log")
plt.yscale("log")
# loglog grid
plt.grid(True, which="minor", linestyle="--", linewidth=0.5, alpha=0.5)
plt.grid(True, which="major", linestyle="-", linewidth=1)
plt.savefig("Time_Performance-Entropy.pdf", bbox_inches="tight")
For the datasets of a length larger than \(10^4=10000\), the approeaches show a linear trend. As this is a log-log plot, this hints a power law relationship between the time complexity and the number of samples. The gaussian kernel approach performs with the worst time complexity, while the discrete Shannon entropy approach performs with the best time complexity, orders of magnitude better and with a lower exponent. Rényi and Tsallis have matching time complexities.
Mutual Information Computation#
For MI, the computation happens analogously to H.
benchmark_max_time = 120
total_keys = len(combinations)
# Create a progress bar for the outer loop with customized widgets
widgets = [
progressbar.DynamicMessage("key"),
" |",
progressbar.Bar(),
" | ",
progressbar.Percentage(),
" (",
progressbar.ETA(),
")",
]
with progressbar.ProgressBar(max_value=total_keys, widgets=widgets) as pbar:
for i, (key, combination) in enumerate(combinations.items()):
pbar.update(i, key=key) # Update the progress bar with the current key
data = data_mi if combination["approach"] != "discrete" else data_mi_discrete
times_mi = [None] * len(data)
for n in range(len(data)):
t0 = time.time()
times_mi[n] = benchmark_approach(
im.entropy,
data[n],
approach=combination["approach"],
**combination["kwargs"],
)
if time.time() - t0 > benchmark_max_time:
print(f"Time limit exceeded for {key} at index {n}")
break
means_mi = [
np.mean(times_mi[n]) if times_mi[n] is not None else np.nan
for n in range(len(data))
]
stds_mi = [
np.std(times_mi[n]) if times_mi[n] is not None else np.nan
for n in range(len(data))
]
combinations[key]["mi_means"] = means_mi
combinations[key]["mi_times"] = times_mi
combinations[key]["mi_stds"] = stds_mi
key: kernel(gaussian) ||###### | | 22% (ETA: 0:43:20)
Time limit exceeded for kernel(box) at index 19
key: metric ||############# | | 33% (ETA: 0:54:41)
Time limit exceeded for kernel(gaussian) at index 15
key: ordinal($d$=8) ||################# | | 55% (ETA: 0:43:23)
Time limit exceeded for ordinal($d$=3) at index 18
key: renyi($\alpha$=1) ||################### | | 66% (ETA: 0:29:48)
Time limit exceeded for ordinal($d$=8) at index 16
key: renyi($\alpha$=1.5) ||##################### | | 77% (ETA: 0:22:04)
Time limit exceeded for renyi($\alpha$=1) at index 17
key: tsallis($q$=1.05) ||######################### | | 88% (ETA: 0:10:38)
Time limit exceeded for renyi($\alpha$=1.5) at index 20
key: tsallis($q$=1.05) ||#############################| | 100% (Time: 1:40:50)
Time limit exceeded for tsallis($q$=1.05) at index 17

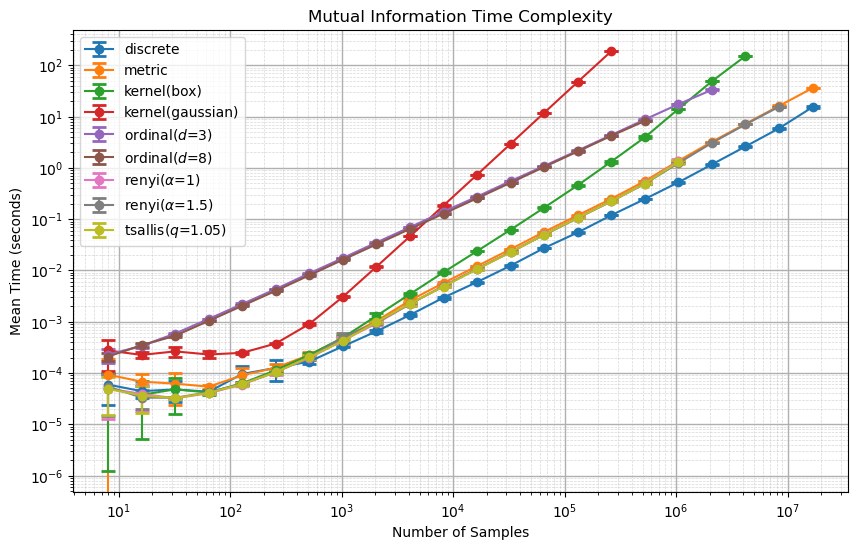

# Plotting the MI times against the number of samples
plt.figure(figsize=(10, 6))
for key, combination in combinations.items():
plt.errorbar(
data_lengths,
combination["mi_means"],
yerr=combination["mi_stds"],
marker="o",
label=key,
capsize=5,
capthick=2,
)
plt.xlabel("Number of Samples")
plt.ylabel("Mean Time (seconds)")
plt.title(f"Mutual Information Time Complexity")
plt.legend()
# log-log
plt.xscale("log")
plt.yscale("log")
# loglog grid
plt.grid(True, which="minor", linestyle="--", linewidth=0.5, alpha=0.5)
plt.grid(True, which="major", linestyle="-", linewidth=1)
plt.savefig("Time_Performance-Mutual_Information.pdf", bbox_inches="tight")

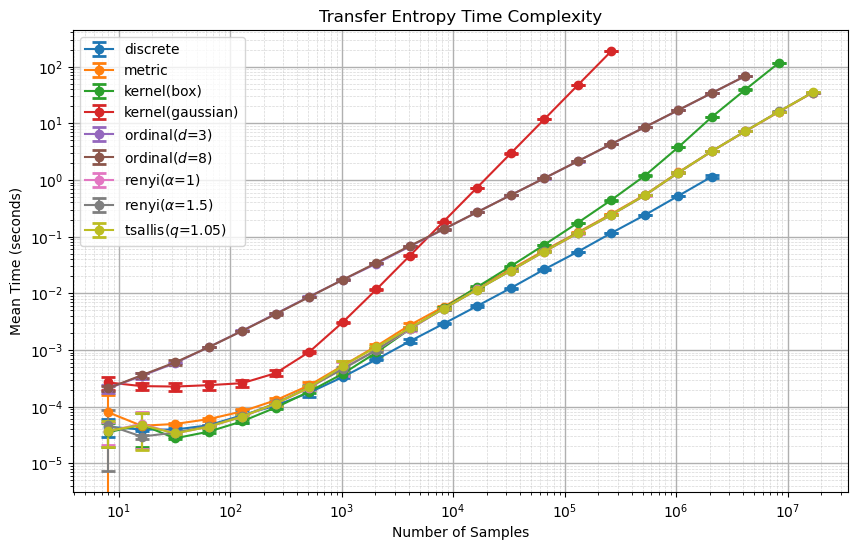

Transfer Entropy Comutation#
TE also happens analogously to H and MI.
benchmark_max_time = 120
total_keys = len(combinations)
# Create a progress bar for the outer loop with customized widgets
widgets = [
progressbar.DynamicMessage("key"),
" |",
progressbar.Bar(),
" | ",
progressbar.Percentage(),
" (",
progressbar.ETA(),
")",
]
with progressbar.ProgressBar(max_value=total_keys, widgets=widgets) as pbar:
for i, (key, combination) in enumerate(combinations.items()):
pbar.update(i, key=key) # Update the progress bar with the current key
data = data_te if combination["approach"] != "discrete" else data_te_discrete
times_te = [None] * len(data)
for n in range(len(data)):
t0 = time.time()
times_te[n] = benchmark_approach(
im.entropy,
data[n],
approach=combination["approach"],
**combination["kwargs"],
)
if time.time() - t0 > benchmark_max_time:
print(f"Time limit exceeded for {key} at index {n}")
break
means_te = [
np.mean(times_te[n]) if times_te[n] is not None else np.nan
for n in range(len(data))
]
stds_te = [
np.std(times_te[n]) if times_te[n] is not None else np.nan
for n in range(len(data))
]
combinations[key]["te_means"] = means_te
combinations[key]["te_times"] = times_te
combinations[key]["te_stds"] = stds_te
key: kernel(box) ||### | | 11% (ETA: 2:17:33)
Time limit exceeded for discrete at index 18
key: kernel(gaussian) ||###### | | 22% (ETA: 1:27:13)
Time limit exceeded for kernel(box) at index 20
key: metric ||############# | | 33% (ETA: 1:09:21)
Time limit exceeded for kernel(gaussian) at index 15
key: ordinal($d$=8) ||################# | | 55% (ETA: 0:37:20)
Time limit exceeded for ordinal($d$=3) at index 19
key: renyi($\alpha$=1) ||################### | | 66% (ETA: 0:27:04)
Time limit exceeded for ordinal($d$=8) at index 19
key: tsallis($q$=1.05) ||#############################| | 100% (Time: 1:07:48)4)
# Plotting the TE times against the number of samples
plt.figure(figsize=(10, 6))
for key, combination in combinations.items():
plt.errorbar(
data_lengths,
combination["te_means"],
yerr=combination["te_stds"],
marker="o",
label=key,
capsize=5,
capthick=2,
)
plt.xlabel("Number of Samples")
plt.ylabel("Mean Time (seconds)")
plt.title(f"Transfer Entropy Time Complexity")
plt.legend()
# log-log
plt.xscale("log")
plt.yscale("log")
# loglog grid
plt.grid(True, which="minor", linestyle="--", linewidth=0.5, alpha=0.5)
plt.grid(True, which="major", linestyle="-", linewidth=1)
plt.savefig("Time_Performance-Transfer_Entropy.pdf", bbox_inches="tight")
Comparison#
Finally, we show the three results in a unified plot with shared y-axis for comparison.
# Plot all three together
fig, axes = plt.subplots(ncols=3, figsize=(12, 4.5), sharey=True)
fig.subplots_adjust(wspace=0.06)
for key, combination in combinations.items():
axes[0].errorbar(
data_lengths,
combination["h_means"],
yerr=combination["h_stds"],
marker="o",
label=key,
capsize=4,
capthick=1,
)
axes[1].errorbar(
data_lengths,
combination["mi_means"],
yerr=combination["mi_stds"],
marker="o",
label=key,
capsize=4,
capthick=1,
)
axes[2].errorbar(
data_lengths,
combination["te_means"],
yerr=combination["te_stds"],
marker="o",
label=key,
capsize=4,
capthick=1,
)
axes[0].set_title(r"Entropy $\it{im.entropy(…)}$")
axes[1].set_title(r"Mutual Information $\it{im.mi(…)}$")
axes[2].set_title(r"Transfer Entropy $\it{im.te(…)}$")
axes[0].set_ylabel("Time (seconds)", fontsize=12)
axes[0].set_ylim(4e-6, 3e2)
# Title for all
fig.suptitle("Information Measure Time Complexities Compared", fontsize=15, y=1.02)
for ax in axes:
ax.set_xlabel(r"Data Length $N$ (#)")
# ax.set_ylabel('Time (seconds)')
ax.set_xscale("log")
ax.set_yscale("log")
# x ticks 10e1, e3, e5, e7
ax.set_xticks([1e1, 1e3, 1e5, 1e7])
# y ticks 10e-4, e-2, e0, e2
ax.set_yticks([1e-4, 1e-2, 1e0, 1e2])
ax.grid(True, which="major", linestyle="-", linewidth=1, axis="both")
ax.grid(True, which="minor", linestyle="--", linewidth=0.5, alpha=0.3, axis="both")
# axes[2].legend(ncols=5, fontsize=6, bbox_to_anchor=(0.2, -0.2))
handles, labels = axes[0].get_legend_handles_labels()
# Adjust layout to make room for the legend
fig.subplots_adjust(bottom=0.17)
# Create a legend manually and place it below the subplots
fig.legend(
handles, labels, loc="upper center", bbox_to_anchor=(0.5, 0.05), ncol=5, fontsize=11
)
plt.savefig("Time_Performance.pdf", bbox_inches="tight")
plt.show()
Backup and Load Data#
If you want to look into our data, download it at time_data.pkl.
import pickle
# Save data to pickle file
with open("time_data.pkl", "wb") as f:
pickle.dump((data_lengths, combinations), f)
If you want to load it into this notebook, use the following code:
import pickle
# Load data from pickle file
with open("time_data.pkl", "rb") as f:
data_lengths, combinations = pickle.load(f)
