Schreiber’s TE Article#
In this notebook, we reproduce the numerical experiments described in Thomas Schreiber’s seminal paper “Measuring Information Transfer” (2000) [Sch00], focusing on two canonical systems: the tent map lattice and the Ulam map lattice. The goal is to compute and visualize Transfer Entropy (TE) and Mutual Information (MI) under varying coupling strengths, using discrete and the kernel-based estimators implemented via the infomeasure Python package. The methodology closely follows Schreiber’s formulations.
import infomeasure as im
import numpy as np
import matplotlib.pyplot as plt
im.Config.set_logarithmic_unit("bits")
Example 1: Unidirectionally Coupled Tent Maps#
In this section, we simulate a 1D lattice of 100 coupled tent maps with unidirectional coupling. The system evolves according to the equation:
where the tent map function is defined as:
Each state \(x_n^m\) is coarse-grained into binary form by thresholding at \(x = 0.5\), producing a symbolic sequence \(I_n^m \in \{0, 1\}\).
We compute the transfer entropy from site \(m-1\) to site \(m\) using a history length of \(1\) and binary partitions. Transfer entropy is estimated across a range of coupling strengths \(\epsilon \in [0, 0.05]\) and averaged over 10 independent runs ( one can increase this run to reduce the statistical fluctation).
For small coupling, the theoretical form is:
\(\alpha\) has been determined with a fit. We are using the value Schreiber obtained. This experiment demonstrates how TE increases with coupling in the correct direction, while remaining zero in the reverse, validating its directional sensitivity.
def tent_map(x):
"""
Apply the tent map function element-wise to an array.
f(x) = 2x if x < 0.5
2 - 2x if x >= 0.5
Parameters:
- x: NumPy array of floats in [0, 1]
Returns:
- NumPy array of transformed values
"""
return np.where(x < 0.5, 2 * x, 2 - 2 * x)
def generate_data(epsilon, num_maps=100, transient=100000, num_iterations=100000):
"""
Simulates a 1D unidirectionally coupled tent map lattice.
Parameters:
- epsilon: Coupling strength (float between 0 and 1)
- num_maps: Number of lattice sites (default 100)
- transient: Number of iterations to discard before measurement (default 100000)
- num_iterations: Number of iterations to keep after transients (default 100000)
Returns:
- binary_data: NumPy array (num_iterations x num_maps) with values 0 or 1 (binary partition)
"""
# Initial random state for each map
x = np.random.rand(num_maps)
# Run transient iterations (discarded)
for _ in range(transient):
x = tent_map(epsilon * np.roll(x, 1) + (1 - epsilon) * x)
# Initialize array to store post-transient values
data = np.zeros((num_iterations, num_maps))
data[0] = x
# Simulate system for recording
for t in range(1, num_iterations):
data[t] = tent_map(
epsilon * np.roll(data[t - 1], 1) + (1 - epsilon) * data[t - 1]
)
# Apply binary partition (threshold at 0.5)
binary_data = (data >= 0.5).astype(int)
return binary_data
# --- Coupling strengths from 0 to 0.05 in steps of 0.002 ---
couplings = np.arange(0, 0.052, 0.002)
# --- Lists to store mean and standard error of TE estimates ---
TE_mean = []
TE_std_err = []
# --- Loop over each coupling strength ---
for eps in couplings:
te_runs = [] # Store TE values for multiple runs
# Repeat simulation 10 times for averaging
for run in range(10):
binary_data = generate_data(eps)
# Select two adjacent sites: m-1 and m
x = binary_data[:, -2] # site m-1
y = binary_data[:, -1] # site m
# Estimate Transfer Entropy: m-1 → m
estimator = im.estimator(
x,
y,
measure="te",
approach="discrete", # Use discrete estimator for symbolic (binary) input
)
te_value = estimator.effective_val()
te_runs.append(te_value)
# Store mean and standard error
TE_mean.append(np.mean(te_runs))
TE_std_err.append(np.std(te_runs) / np.sqrt(len(te_runs)))

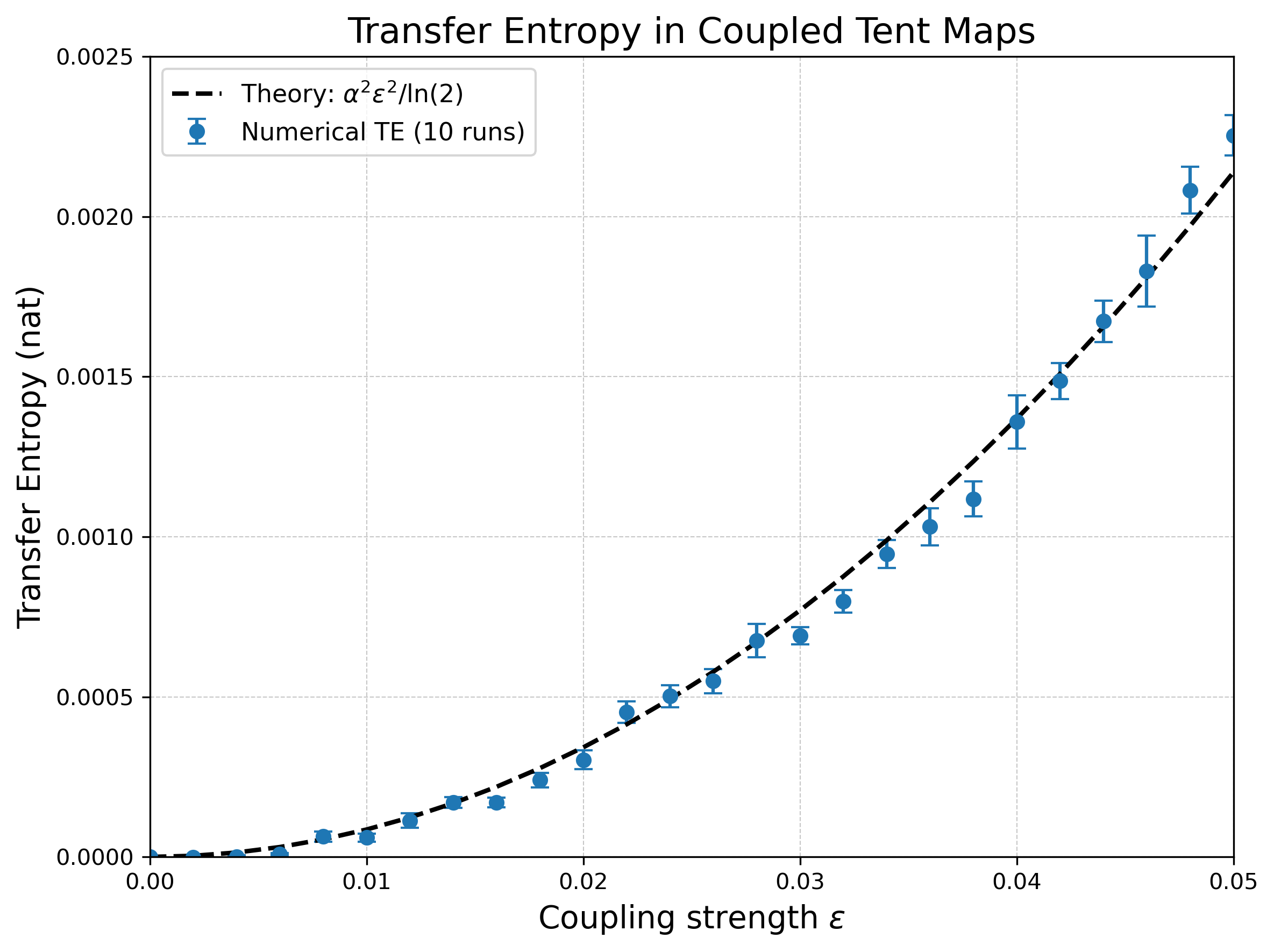

# --- Plotting Results ---
plt.figure(figsize=(8, 6), dpi=300)
plt.errorbar(
couplings,
TE_mean,
yerr=TE_std_err,
fmt="o",
markersize=6,
capsize=4,
linewidth=1.5,
label="Numerical TE (10 runs)",
)
# Add Schreiber’s theoretical prediction curve
alpha = 0.77
theoretical_TE = (alpha**2) * (couplings**2) / np.log(2)
plt.plot(
couplings,
theoretical_TE,
color="black",
linestyle="--",
linewidth=2,
label=r"Theory: $\alpha^2 \epsilon^2 / \ln(2)$",
)
plt.xlabel(r"Coupling strength $\epsilon$", fontsize=14)
plt.ylabel("Transfer Entropy (nat)", fontsize=14)
plt.title("Transfer Entropy in Coupled Tent Maps", fontsize=16)
plt.xlim(0, 0.05)
plt.ylim(0, 0.0025)
plt.grid(True, linestyle="--", linewidth=0.5, alpha=0.7)
plt.legend(frameon=True, fontsize=11)
plt.tight_layout()
plt.savefig("tentMapResults.pdf")
plt.show()
Example 2: Unidirectionally Coupled Ulam Maps#
This section, we simulate the lattice of unidirectionally coupled Ulam maps:
where the Ulam map is given by:
We extract time series data from three adjacent sites: \(x_n^{m-1}\), \(x_n^m\), and \(x_n^{m+1}\). Transfer entropy is computed in both directions:
and compared with time-delayed mutual information at lag \(\tau = 1\) (equivalent to 0.5 s at a 2 Hz sampling rate):
All information quantities are estimated using kernel-based estimators with a box kernel, embedding dimension (history lemgth) of \(l\).
We vary the coupling strength \(\epsilon\) from 0 to 1 in 50 increments. The results show that transfer entropy clearly reflects the unidirectional nature of the coupling, while mutual information tends to capture static correlations and becomes symmetric in regimes of partial synchronization.
# define the dynamic
def ulam_map(x):
"""Ulam map function: f(x) = 2 - x^2"""
return 2 - x**2
def generate_ulam_lattice(epsilon, num_maps=100, transient=100000, steps=10000):
"""
Simulates a 1D lattice of Ulam maps with unidirectional coupling.
Parameters:
epsilon (float): Coupling strength
num_maps (int): Number of sites
transient (int): Number of iterations to discard
steps (int): Number of iterations to return for analysis
Returns:
np.ndarray: Array of shape (steps, num_maps)
"""
# Initialize random initial state
x = np.random.rand(num_maps)
# Transient evolution (not stored)
for _ in range(transient):
x = ulam_map(epsilon * np.roll(x, 1) + (1 - epsilon) * x)
# Allocate space for recorded dynamics
data = np.zeros((steps, num_maps))
data[0] = x
# Main simulation
for t in range(1, steps):
data[t] = ulam_map(
epsilon * np.roll(data[t - 1], 1) + (1 - epsilon) * data[t - 1]
)
return data
# Parameters
coupling_values = np.linspace(0, 1, 50)
num_runs = 10 # Set to 10 as in article
num_maps = 100
transient = 100000 # Set to 100000 as in article
steps = 10000 # Set to 10000 as in article
# Containers for MI and TE values
mi_pos, mi_neg = [], []
te_pos, te_neg = [], []
for eps in coupling_values:
# print(f"Running for ε = {eps:.3f}")
mi_pos_vals, mi_neg_vals = [], []
te_pos_vals, te_neg_vals = [], []
for _ in range(num_runs):
data = generate_ulam_lattice(eps, num_maps, transient, steps)
# Choose site m = 50 (central), use m-1 and m+1 as source
x_m_minus1 = data[:, 49]
x_m = data[:, 50]
x_m_plus1 = data[:, 51]
# Transfer Entropy m-1 → m (positive direction)
estimator_te_pos = im.estimator(
x_m_minus1,
x_m,
measure="te",
approach="kernel",
bandwidth=0.3, # 0.2 in article
kernel="box",
)
te_pos_vals.append(estimator_te_pos.effective_val())
# Transfer Entropy m+1 → m (negative direction)
estimator_te_neg = im.estimator(
x_m_plus1, x_m, measure="te", approach="kernel", bandwidth=0.3, kernel="box"
)
te_neg_vals.append(estimator_te_neg.effective_val())
# Mutual Information m-1 and m (forward in time)
estimator_mi_pos = im.estimator(
x_m_minus1[:-1],
x_m[1:],
measure="mi",
approach="kernel",
bandwidth=0.3,
kernel="box",
)
mi_pos_vals.append(estimator_mi_pos.global_val())
# Mutual Information m+1 and m (backward in time)
estimator_mi_neg = im.estimator(
x_m_plus1[:-1],
x_m[1:],
measure="mi",
approach="kernel",
bandwidth=0.3,
kernel="box",
)
mi_neg_vals.append(estimator_mi_neg.global_val())
# Store averages for current epsilon
te_pos.append(np.mean(te_pos_vals))
te_neg.append(np.mean(te_neg_vals))
mi_pos.append(np.mean(mi_pos_vals))
mi_neg.append(np.mean(mi_neg_vals))

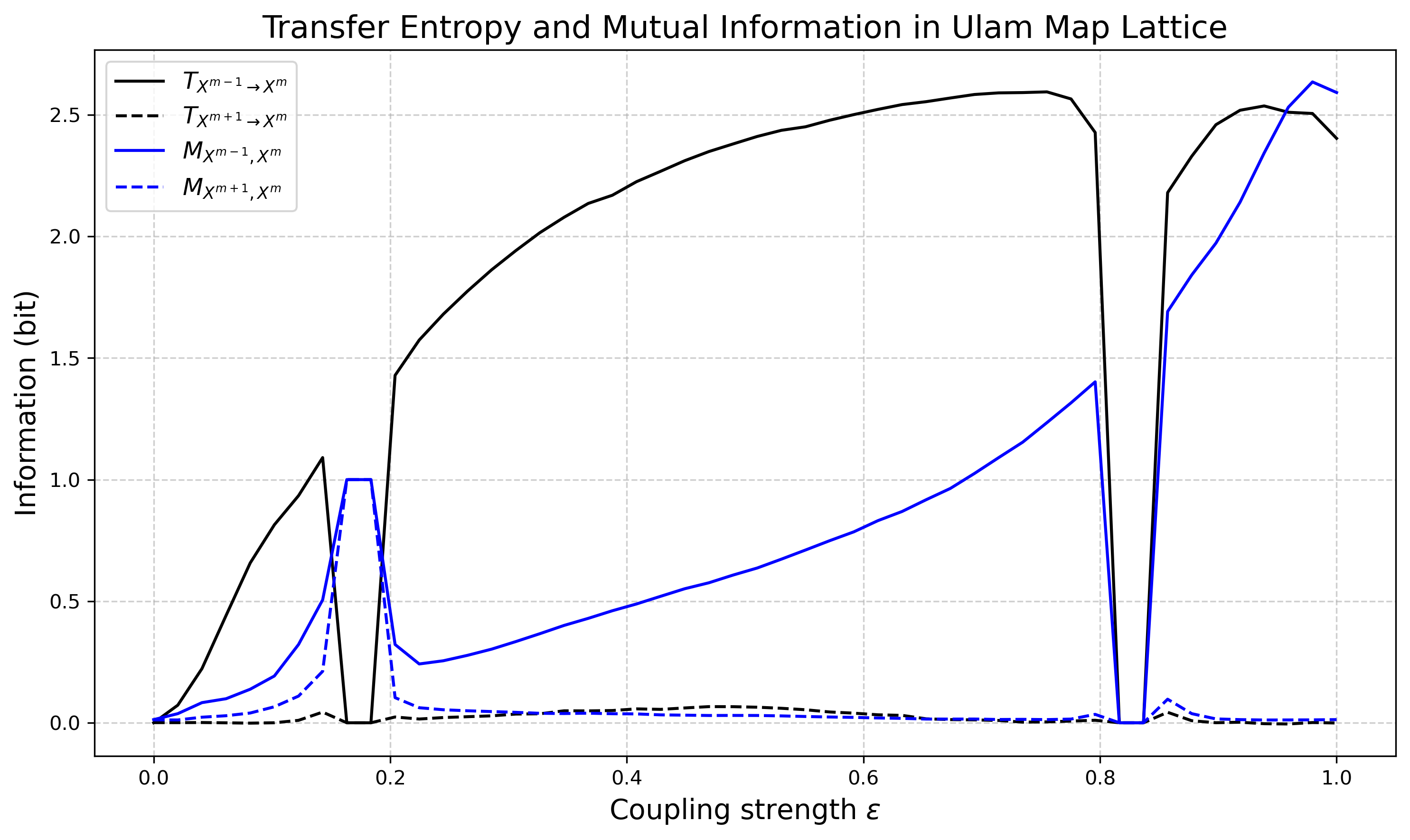

# === Plot Results ===
plt.figure(figsize=(10, 6), dpi=300)
# TE: solid lines
plt.plot(
coupling_values,
te_pos,
label=r"$T_{X^{m-1} \rightarrow X^m}$",
color="black",
linestyle="-",
)
plt.plot(
coupling_values,
te_neg,
label=r"$T_{X^{m+1} \rightarrow X^m}$",
color="black",
linestyle="--",
)
# MI: dashed lines
plt.plot(
coupling_values, mi_pos, label=r"$M_{X^{m-1}, X^m}$", color="blue", linestyle="-"
)
plt.plot(
coupling_values, mi_neg, label=r"$M_{X^{m+1}, X^m}$", color="blue", linestyle="--"
)
plt.xlabel("Coupling strength $\\epsilon$", fontsize=14)
plt.ylabel("Information (bit)", fontsize=14)
plt.title("Transfer Entropy and Mutual Information in Ulam Map Lattice", fontsize=16)
plt.grid(True, linestyle="--", alpha=0.6)
plt.legend(fontsize=12)
plt.tight_layout()
plt.savefig("ulam_te_mi_plot.pdf")
plt.show()
